Natural Gas Under Pressure Can Go Out of Control Within the Earth

by S. Tom Bond on February 10, 2019

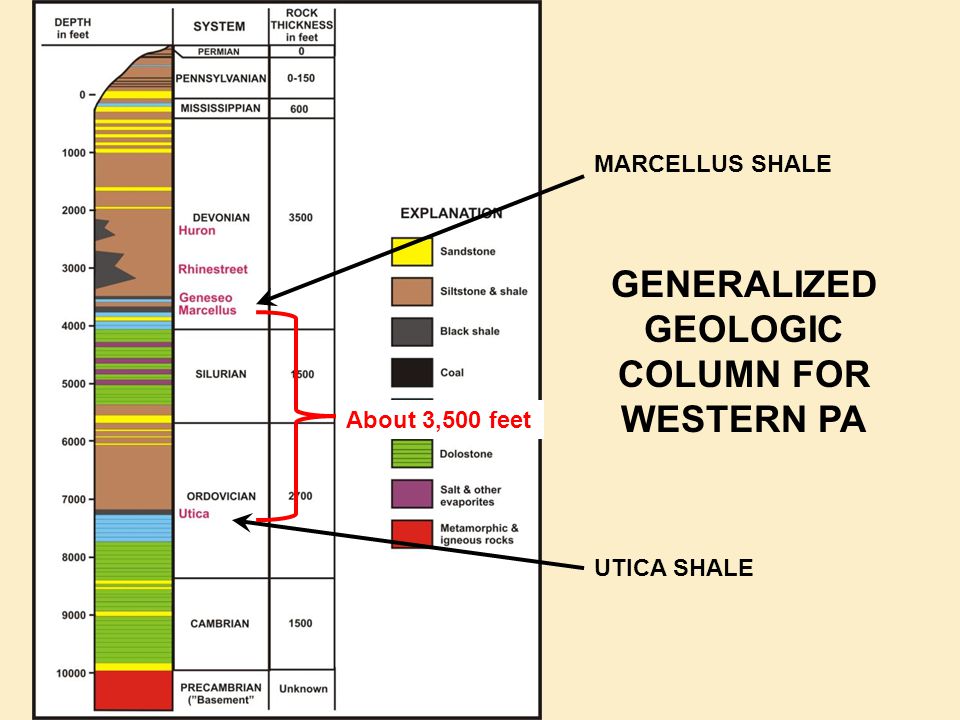

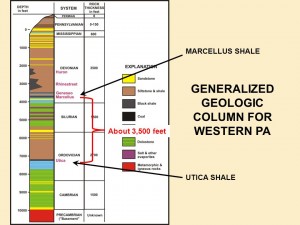

Marcellus & Utica shales are much deeper to the east and south

Natural Gas in Geologic Formations Can Flow Under Pressure Through and Among the Various Strata Present in a Region

Essay by S. Tom Bond, Retired Chemistry Professor & Resident Farmer, Lewis County, WV, February 10, 2019

Some friends and I were at lunch the other day when the subject of a fracking well near the Beaver Run Reservoir “connecting” to older shallower wells came up. This occurred in Westmoreland County, PA, a few miles southeast of Pittsburgh. What had happened, the well pressure in the new Utica well dropped suddenly and the pressure in four older surrounding “conventional” wells rose. (The older wells were vertical and did not reach the depth of the well being drilled.)

The new well is located, rather carelessly, beside the reservoir, which provides water for something like 150,00 people. The worry was that fluids would come all the way to the surface and fracking chemicals would get in the reservoir. Also, explosions or fires could occur at the older wells.

One of our group pointed out that the representations you see in publications show the shale layers like a wedding cake, uniform thickness, parallel and horizontal, which is not an accurate representation. Shale layers are certainly not uniform and not without defects, fractures or fissures.

The deposition of shale is what is described as “turbidites,” a mass of saturated clay mud slipping and slowly being washed down slope in quiet water, well below the surface of an inland sea. It is like a river delta, streams meandering and frequently changing course. This is occasionally being pushed out by slides of coarser sediment deposited nearer shore. This mud contains a few percent of organic matter from sea life, which decays without contact with oxygen to become oil and gas.

The amount of oil and gas is so small and the shale so fine it cannot flow like conventional wells. Fracking breaks some of the shale to release 7% or less of the oil and/or gas present in the shale. Lots of irregularities are present, so the fracturing is not symetrical.

One of us suggested the layer cake model was the result of the confusion between the executives who describe for the artists what they want. Another thought the confusion was between the geologists and the executives, since the executives are “doers” and don’t have much of an education in geology. Every effort is made to keep things simple in presenting information to the public, too. Probably there is enough blame for the misrepresentation to go around to all these sources.

We agreed that ”communication” through the geologic layers is not new. That is, gas having enough pressure to penetrate horizontally (and perhaps vertically) outside the intended boundaries. I recalled discussion with friends in Doddridge County of how some conventional well owners were beneficiaries of fracking, it improved the production of their shallow wells! That was years ago and continues.

Someone over there pointed out to me an abandoned old well that was frosted over from the fracked well gas that had leaked into it. We all knew that gas under pressure cooled when the pressure was relieved. In that case, enough to cause frost in summer, even. Others of our lunch group could tell related stories.

Leaks from around casing not properly sealed is likely the cause of most leaks that destroy well and surface waters. Drillers are impatient to start after the cement is placed around the pipe designed to protect surface water, it costs them hundreds of dollars an hour to have an idle rig. So pressure comes on before the cement is fully set up. They have been known to supply clean water to people near their rig, acknowledging fault. It is usually stopped when the driller leaves the neighborhood, though.

****************************************

See also: Geologic Misconceptions: “Layer-cake” stratigraphy | WIRED

****************************************
See also: New Penna. Utica Well Being Plugged After Disturbing Other Wells, www.FrackCheckWV.net

{ 3 comments… read them below or add one }

George Neall February 10, 2019 at 7:45 pm

To Tom Bond,

Excellent commentary. As a retired mining engineer, I have seen a number of instances where things that “should not have happened” in mines, did, indeed, happen because of geologic variances, nonconformities, fracture zones, subsidence areas, ancient stream channels, etc., that were not accounted for. In practice, such factors are extremely difficult accurately predict and account for.

All one has to do is drive along any big road cut through rock and it is evident how quickly the geology/stratigraphy can change. The USGS had a symposium in 1994 (Link 2 to 1994 USGS Report) that discussed many of these issues. The O&G industry is aware of this publication and another 1954 USGS publication on deep well injection and earthquakes (Link 1 to 1951 USGS Report).

Even though these reports demonstrated what could happen with deep well injection and fracking (a type of deep well injection), the O&G industry, like the cigarette industry did, is denying the cause and effect.

Not only can/does natural gas migrate great distances, but fluids can, too. The Hutchinson, KS gas explosion in 2001 is but one example. There are many links/hits on this explosion (LINK).

George Neall, Mathias, WV

LINK: An Unseen Leak, Then Boom — ProPublica, June 21, 2013
https://www.propublica.org/article/an-unseen-leak-then-boom

LINK 1: Earthquake Hazard Associated With Deep Well Injection, US-EPA, 1951
https://pubs.usgs.gov/bul/1951/report.pdf

LINK 2: The Mechanical Involvement of Fluids in Faulting, USGS, June 1993
https://pubs.usgs.gov/of/1994/0228/report.pdf

Reply

Tom Bond February 10, 2019 at 8:46 pm

CNX has released a statement carried in the following article:

https://www.post-gazette.com/business/powersource/2019/02/09/CNX-suspected-cause-Utica-Shale-natural-gas-well-Beaver-Run-Reservoir/stories/201902090029

They are saying the problem was an unsatisfactory well casing job. That is consistent with the final paragraph above. The figures given in the Post-Gazette article are very favorable to the industry, however.

This may not be an adequate explanation because CNX has not admitted that their casing lost gas containment permitting pressure release to a wide geographic area. This created an extremely dangerous situation for all the conventional wells affected.

Anthony Ingraffea is perhaps the best-qualified person to comment on that. He is the Dwight C. Baum Professor of Engineering, Weiss Presidential Teaching Fellow at Cornell University. A professional Petroleum Engineer, he has been involved in study related to fracking since 1974, financed by National Science Foundation (NSF) through Schlumberger, Gas Research Institute, Sandia National Laboratories, and many more even the general reader would recognize.

See the following for more information on his research, findings, and advocacy:

Meet Anthony Ingraffea—From Industry Insider to Implacable Fracking Opponent – EcoWatch, January 2, 2013

https://www.ecowatch.com/meet-anthony-ingraffea-from-industry-insider-to-implacable-fracking-op-1881680606.html

Reply

Jan Milburn January 12, 2020 at 9:39 pm

Another incident at Beaver Run Reservoir.

This time Hutchinson gas site and the surfactant spilled was 2 BE which has been implicated in other frack incidents and is toxic, linked to rare cancers. —- Not to worry its just the drinking water for about 150, 000 people. Jan Milburn

From: Laura Blood
Fri, Jan 10, 12:22 PM
“On Tuesday morning January 7th, gas recovery foam (a surfactant) overflowed from their brine tank and into the surrounding secondary containment. A sheen of foam was blown by wind to the surrounding gravel pad around the secondary containment area. CNX removed the affected gravel. MAWC staff conducted a follow-up inspection on January 9th. There were no receiving tributaries in the surrounding areas and no expected impacts to public drinking water.”

(See attached for photos and Safety Data Sheet.)

Laura Blood-Source Water Supervisor
724-727-2300 ext. 11 (O) 412-218-8479 (M)
George R. Sweeney Water Treatment Plant
136 Geo Sweeney Water Rd
Saltsburg PA 15681

X. X. X. X. X. X. X. X. X. X. X. X. X. X. X.
NOTE: From the safety data sheet Product Name
ProSTREAM FO 2150 (contains 2 BE)
OSHA Regulatory Status
This chemical is considered hazardous by the 2012 OSHA Hazard Communication Standard (29 CFR 1910.12
Causes serious eye irritation May cause cancer.

2 B E is 2-Butoxyethanol —

Butoxyethanol is an organic compound with the chemical formula BuOC2H4OH This colorless liquid has a sweet, ether-like odor, as it derives from the family of glycol ethers, and is a butyl ether of ethylene glycol.

Related ethers: 2-Methoxyethanol; 2-Ethoxyethanol
CAS Number: 111-76-2
Chemical formula: C6H14O2
Flash point: 67 °C (153 °F; 340 K)

Reply
